Place of Origin: | Shenzhen, China |
Brand Name: | Rainbow |
Certification: | ISO 9001:2008 |
Model Number: | Anti-static bags |
Minimum Order Quantity: | 20,000 pcs |
---|---|
Price: | US$0.05-US$0.2 |
Packaging Details: | Outer carton box, inner poly packing |
Delivery Time: | Within 15 days after confirm the deposit |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1,000,000 pcs every week |
Highlight: | anti static plastic bags,anti static packaging |
---|

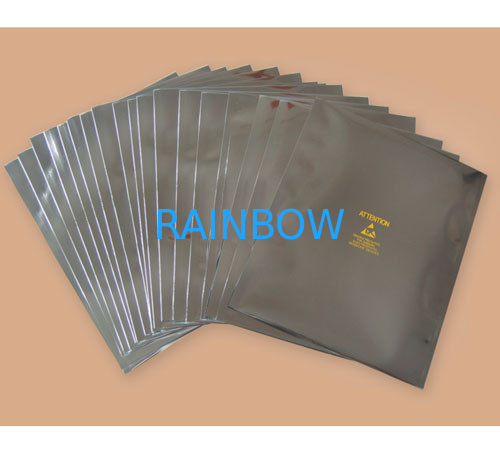

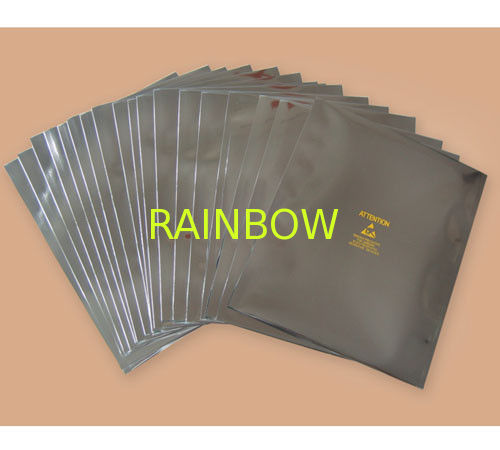

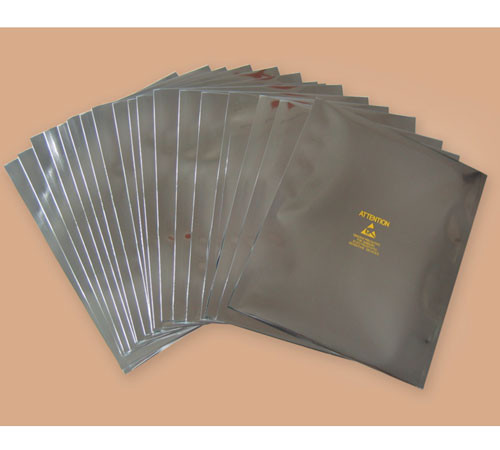

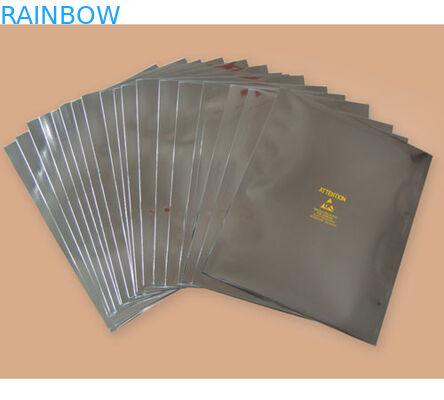

Foil Anti Static Packaging Opaque Light Tight Vapor and Oxygen Resistance
Description:
1. Available in three –layer or four-layer structure; material:PET / VMPET / anti-static PE, PET/anti-static PE
2. Firm lamination and hot sealing offers superior resistance of vapor and oxygen ;
3. Protect your expensive electronics from moisture and static damage ;
4. In flat open top style , Both printing and non-printing;Up to 10 color of gravure printing,with vivid printing effect.
5. Being opaque and light tight, it ensures the inside item can not been seen from outside ;
6. Surface e resistance of108—1011Ω;
7. Applicable to pack electronic products which are sensitive to moisture and static, such as PC board, IC integrated circuit , CD driver , HD etc.
8. Professional service;
9. Free sample for spout pouch;
No. |
Item |
Unit |
Test standard and index |
1 |
Metal layer resistance |
ohm/sq |
<100 |
2 |
Metal layer optical transmission |
Optical density |
40%-0.4 optical density |
3 |
Surface resistivity |
Ohm/sq |
<1010 |
4 |
Time for static removal |
5000-0V |
<0.01 Sec. FTMS 101 B Method 4046 |
5 |
Friction static |
E1A541 Appendix C |
TriboelectricNanocouIombs |
Avg. |
Quartz<13n/in Tefion.<13n/in |
||
6 |
Capacitance release |
Voltage difference -E1A541 |
<10V |
7 |
Anti-erosion |
FTMS 101 C |
No visible spots FTMS 101 C Method 3005 |
8 |
Tensile strength |
Ibs./in |
ASTM D882 >18 |
9 |
Tear initiation |
Ibs./in |
ASTM D1004 >2.5 |
10 |
Puncture resistance |
P.S.I |
ASTM D3420 >100 |
11 |
Tear resistance |
Ibs./in |
ASTM D882 > 8 |
12 |
MVTR |
gm/100in-2/24hrs |
ASTM E 96 <0.2 |
13 |
Oxygen barrier |
CC/100in-2/24hrs |
ASTM D 3985 <0.5 |
14 |
Heat seal temperature |
F |
250-375F |
15 |
Heat seal pressure |
P.S.I |
30-70 |
16 |
breaking tensile force N/15mm |
N/15mm |
GB/96-04-10 |
17 |
Breaking elongation |
% |
GB/96-04-10 |
18 |
Size |
GB/96-04-10 |
Thickness ±10%; length ±3 mm; width ±2 mm |
19 |
Appearance |
GB/96-04-10 |
No delamination, burst seal, wrinkle, warp, break, foreign particle adherence, air bubble beyond sealing diameter≤3mm |
Applications:
widelyused for packing PC board, computer main board ,sound card, VGA card, network cardand static sensitive electronic devices.
This kind of bag can keep components sensitive to static away from the potential static danger to the largest extent. Its special four-layer structure can create an inductive cover to separate the goods inside from the static field. Furthermore, the inner layer is made from polyethylene or polypropylene which can avoid static generation inside the bag. In addition, this kind of hot seal bag is translucent , so the goods inside can be easilyrecognizedfromoutside. It’s surface resistance is ≤108—1010Ω.
Specifications:
Name: |
Anti-static bags |
Material: |
PET/VMPET/anti-staticPE |
thickness: |
130mic |
size: |
According to your request |
Color: |
Up to 10 colors |
Print: |
Gravure Trap Printed |
MOQ: |
20,000pcs |
Dlivery time: |
15-20 days after your order approved |
Terms of payment: |
cylinder mold charge+40% deposit by TT or western union,70% balance before delivery |
Producing process |
1.Mould/Cylinders' making; 2.Printing; 3.Laminating; 4.Separating and cutting; 5.Bags' making; 6.Examing. |
Competitive Advantage:
1) equiped with over 50sets advanced machines, 7500square meter clean production area
2) over 100 skilled works, enure short and in-time delivery
3) strict quality control system, follow ISO9001:2008
4) more than 13 manufacturing experience
5)At lower cost than glass and plastic bottle for packing foods and consumer products
